OneUp BASH GUIDE - ISCG05 - V2

Name: OneUp BASH GUIDE - ISCG05 - V2
Brand: OneUP
SKU: 1C0612
Price: 445.00 ILS
Availability: InStock

445.00 ₪

שומרים על החוסן הכלכלי, קונים מקומי למען העסקים בישראל.

אפשרויות משלוח

בקניה עד 245 ש"ח ניתן לאסוף את המשלוח באיסוף עצמי מהחנות ללא עלות או משלוח לנקודת איסוף קרובה לביתך בעלות של 19 ש"ח או משלוח עד הבית בעלות של 29 ש"ח בקניה מעל 245 ש"ח משלוח חינם לנקודת איסוף הקרובה לביתך.

בקניה מעל 395 ש"ח משלוח חינם עד הבית.

הזמנות אשר יתקבלו עד השעה 12:00 ישלחו באותו היום.

הזמנות אשר יתקבלו אחרי השעה 12:00 ישלחו ביום העסקים הקרוב.

הזמנות בסופי שבוע שישי ושבת, ערבי חג וחג ישלחו ביום העסקים הקרוב.

תיאור

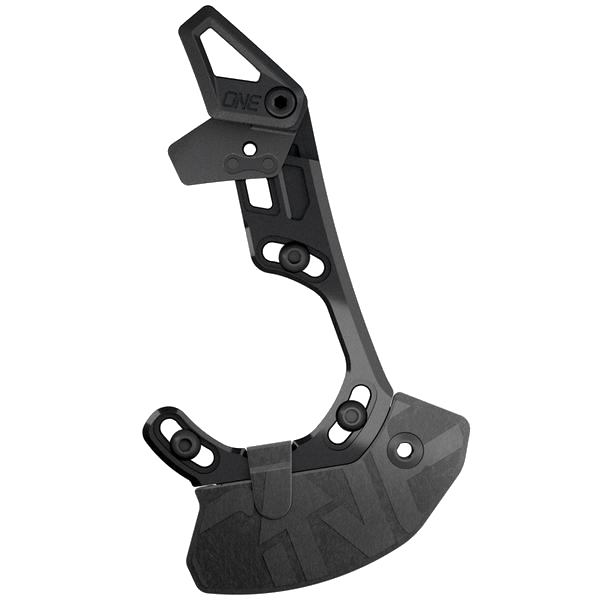

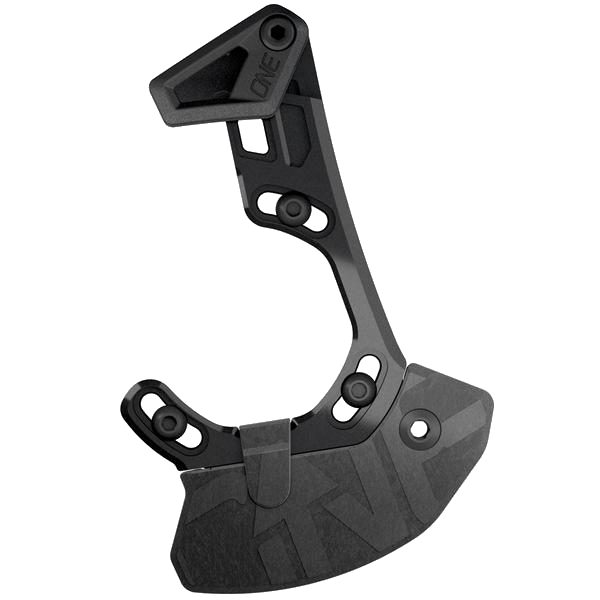

Eliminate dropped chains forever with the new OneUp Components Bash Guide.

As the trend for lower and slacker bikes continues, chainring protection is becoming even more important. Revised for 2019 the OneUp Bash Guide uses simple, one tool installation and adjustment as well as an all new tool less flip

The OneUp Bash Guide was developed with input from top EWS World racers and can be seen all over this years circuit. Reinforced Nylon bash guards and a back plate cut from 8mm thick 7075-T6 aluminum, ensure that the OneUp Bash Guide can handle the biggest hits, but at a weight of only 105g (34T) you may forget it’s even there.

NOT JUST FOR ENDURO RACERS.

The OneUp Bash Guide is equally at home on your trail bike, where the extra bash protection is a must for aggressive riders or on your DH rig. With the popularity of clutch derailleurs, it is no longer necessary to run a chain guide with a lower roller to effectively tension your chain. DH racers and Bike Park rippers will appreciate the huge reduction in drag with the elimination of the lower roller, without sacrificing any strength or chain retention.

The OneUp Bash Guide includes 3 different sizes of bash plate for compatibility with chainrings from 28-36T.

FEATURES

Tool less upper guide flip
Install without removing your crank
Single tool install and adjustment
Boost compatible
Oval Compatible
Black Stainless Steel hardware
Includes 3 bash plates (28-30T, 32-34T, 36T)
Patented US 10,053,188 Other Patents Pending

SPECS

Weight: 90g 28-30T, 105g 32-34T, 110g 36T
Capacity: 28-36T

Chainline: 7.5mm adjustment

Mount: ISCG05

Color: Black top guide piece included

Material: 7075 aluminum, top guide glass reinforced thermoplastic

GUIDE SETUP INSTRUCTIONS

1. Remove top guide by removing the front top guide nut with a 4mm hex (never adjust the rear T25 bolt).

2. Set slider in the highest position. (inserted a 4mm into the hole on the bottom left of the top device with the chain link symbol and backed it out anti-clockwise).
3. Hold backplate directly against ISCG05 tabs. Check for clearance between the back side of the bashplate/guide and the bike frame (use included 2.5mm spacers if necessary to space the backplate away from the frame).

4. Rotate backplate until slider adjustment bolt is directly above the crank axle and torque bolts to 5Nm
5. With crankset and chain installed, use spacer shim block to measure clearance between back plate and chain
6. Determine the corresponding number of chainline shims required
7. If more than 5 shims are required, install the supplied 2.5mm washers behind the backplate and return to step 2

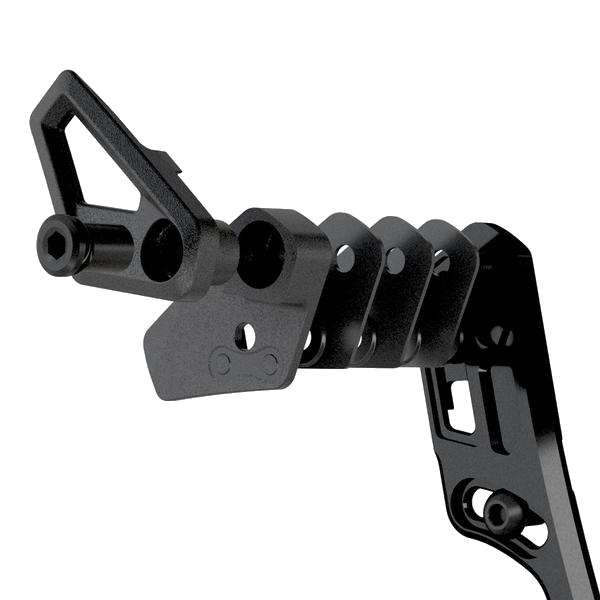

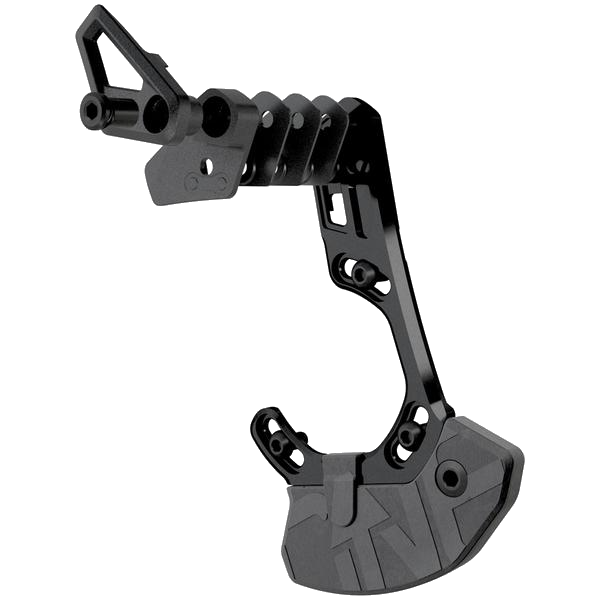

8. Assemble top guide with spacers and tighten bolt to 3Nm

9. Insert a 4mm hex through the hole in the inner top guide, loosen height adjustment bolt and lower the tool onto the chain. Torque to 3Nm to set heigh
